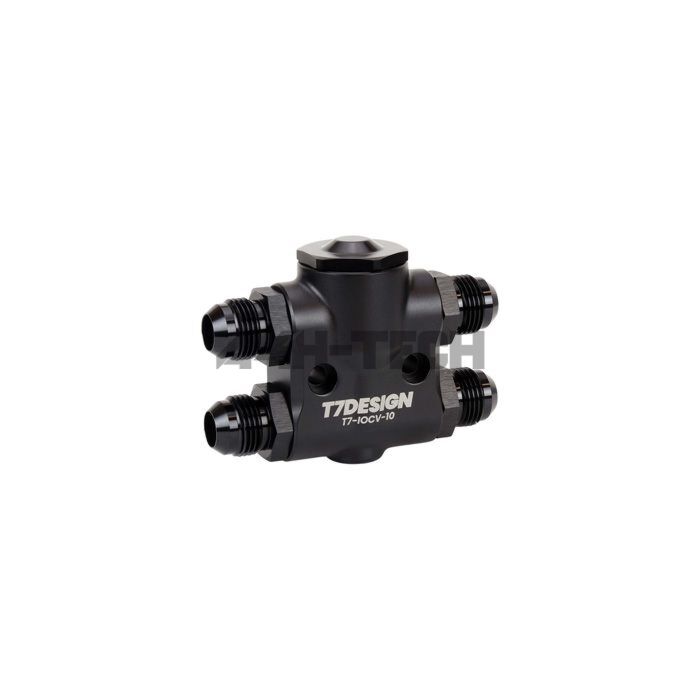

T7Design Oil cooler in-line thermostat 82 degrees.
The T7Design Inline Thermostatic Oil Control Valve is engineered for high flow with minimal restriction, using materials only where necessary to ensure lightness. The result is an exceptionally lightweight component, weighing just 0.2 kg without fittings and 0.29 kg with the supplied fittings. Our thermostatic valve is bi-directional, allowing either side to connect to the engine or the downstream oil cooler radiator. This provides greater mounting flexibility, eliminating the need to install the cooler back-to-front in your engine bay due to mismatched flow paths.
The thermostatic valve is lightweight enough to be mounted inline within the hose assembly. Alternatively, it can be secured to a panel using two M6 cap head bolts through the counterbored M6 holes machined into its body.
Specifications:
- Bi-directional design allowing either side to be connected to engine or oil cooler.
- High-flow internal valve for minimal pressure drop.
- ORB10 connections machined into the body allow for easy adaption to other AN sizes or barbs.
- Fully 3D machined for a superior surface finish.
- Manufactured from lightweight aluminium alloy.
- Hard anodised for a long lasting and durable finish.
- Thermostat Opening Temp: 82 °C | 180 °F
- Weight (with adapters): 0.29 kg | 0.65 lbs
- Connection Type in Body: ORB10
- Adapters Included: ORB10 to AN10
- Mounting Option: 2x Counter bored holes for M6 Cap Head bolts
- Material: 6061-T6 Aluminium Alloy
- Finish: Hard Anodised Black
