Energy Suspension control arm PU bushings front (Honda Civic 96-00 2drs 1.6)

On the front of vehicles, the Energy Suspension Front Control Arm Bushings make a dramatic improvement in the way they handle with quicker steering response and greater vehicle control.

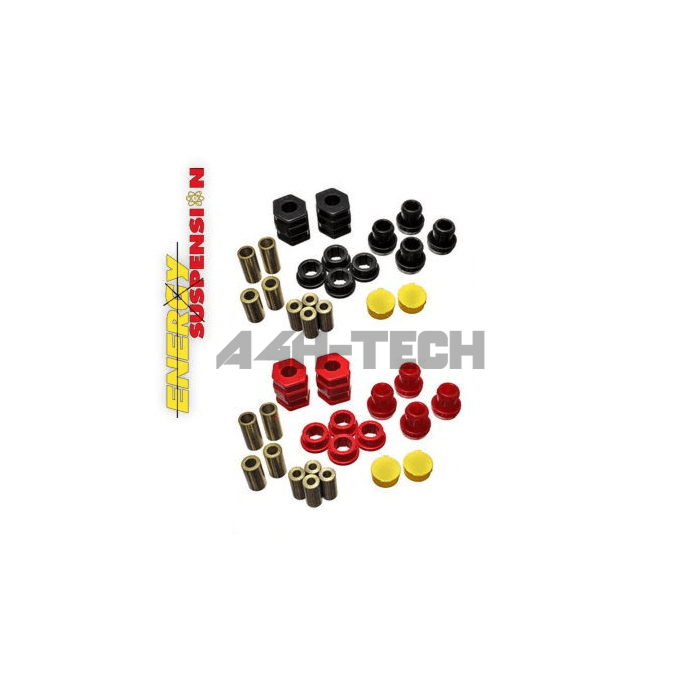

This kit contains:

2x - 3340 - Lower Control Arm Bushings (Rear Position)
2x - Center Metal Sleeves for 3340
4x - 2409 - Lower Control Arm Bushing Halves (Front Position)
2x - Center Metal Sleeves for 2409
4x - 3371 - Upper Control Arm Bushings
4x - Center Metal Sleeves for 3371
2x - Small Formula 5 Prelube Tubs
1x - Installation Instructions # 17278

Please note: This kit only contains the control arm bushings and not shock absorber bushings. Please see the related products list for the shock absorber bushings.

We also advise you to replace the endlinks while replacing the control arm busings. Old endlinks often break during disassembly. Please see the related products list for the correct endlinks.

Characteristics:

-Increases vehicle stability and control as well as durability.
-Reduces wheel hop and traction loss.
-Made of Energy's HYPER FLEX performance polyurethane to add performance and durability
-Heavy duty metal components are used, for increased strength, when applicable
-A real must to use for sport compact competition and performance uses.

The difference between the red and black Energy Suspension bushing:

The only difference between the red and black parts is that most Black Energy Suspension parts are Graphite Impregnated. This serves to help self lubricate the bushings. The Red parts do not have this characteristic. Aside from the actual color and the lack of being Graphite Impregnated - the red parts are essentially the same as the black.
The red parts have the same durometer (hardness) as the Black parts and differ only in their actual appearance (color) and the fact that they're NOT graphite impregnated like the Black parts.

Please select your preferred colour in the drop down menu

PLEASE NOTE: Since the models in the USA are slightly different from EU Civic models, it's important to check what size front lower control arm/shock absorber bushing you have. The length of the bushing is different from 262mm front knuckles (70mm) compared to the length of the lower front shock bush of a 242mm front knuckle (aproxm 50mm). Please measure this before ordering because sometimes people also switch the knuckles as an upgrade.
