Part number
EA-1835431772

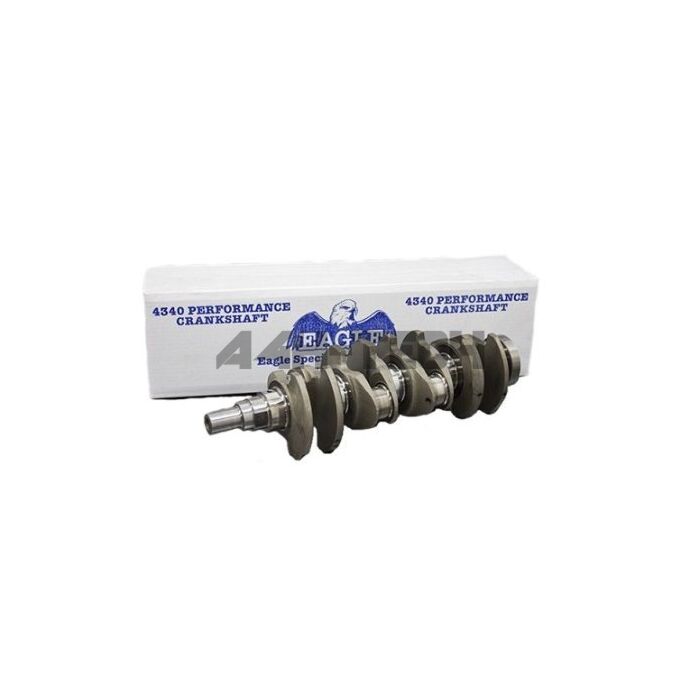

Eagle 4340 Forged crank 90mm stroke (B18A/B18B/B20 engines)

Incl. 21% VAT
Special Price € 825,55 Regular Price € 869,00
You save € 43,45

Shipping costs to your country? Calculate it in your cart.

Klarna logo

In stock

Description

Forged 4340. Feature a non-twist forging, multi-stage heat treat process, stress relieving, shot-peening, and nitriding for superior strength and reliability in the most demanding applications. Each journal is micropolished to a 3 r.a. or better. A .125" radius is used to increase strength, so chamfered bearings must be used. There are the perfect choice for applications up to 1000hp.

90mm stroke.

Highlights:

  • material: forged 4340 steel
  • intended balance: internal
  • stroke: 3.543"
  • rod journal: 1.771"
  • rod journal width: 0.945"
  • main journals: 2.164"
  • minimum rod length: 5.29"
  • typical weight: 31 lbs.



The stroke of this crank is 90mm which is larger than stock. This stroke increases the displacement of the engine over 2.0L. Please make sure you have the correct piston and rod combo for this crank before purchasing it. Its forged 4340 steel composition makes it several times stronger than the factory crank.

Show more

Ask a question about this product

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Description

Forged 4340. Feature a non-twist forging, multi-stage heat treat process, stress relieving, shot-peening, and nitriding for superior strength and reliability in the most demanding applications. Each journal is micropolished to a 3 r.a. or better. A .125" radius is used to increase strength, so chamfered bearings must be used. There are the perfect choice for applications up to 1000hp.

90mm stroke.

Highlights:

  • material: forged 4340 steel
  • intended balance: internal
  • stroke: 3.543"
  • rod journal: 1.771"
  • rod journal width: 0.945"
  • main journals: 2.164"
  • minimum rod length: 5.29"
  • typical weight: 31 lbs.



The stroke of this crank is 90mm which is larger than stock. This stroke increases the displacement of the engine over 2.0L. Please make sure you have the correct piston and rod combo for this crank before purchasing it. Its forged 4340 steel composition makes it several times stronger than the factory crank.
