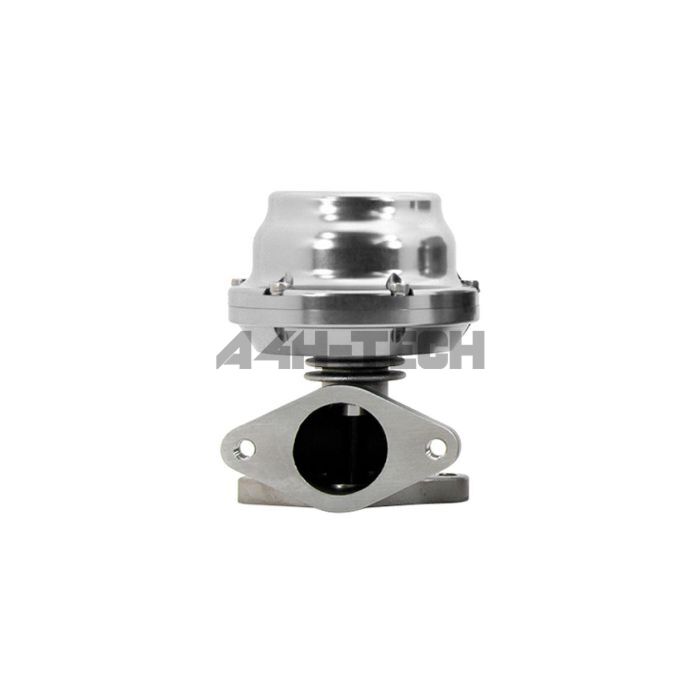

TiAL Sport Externe wastegate zilver 38mm 2-bouts (universeel)

The F38 replaces the legacy-model F35, and is unique in that it uses a 2-bolt flanged design for both inlet and outlet. This makes it an excellent upgrade or update for similar products.

Technical Specifications:
- High temp based alloy valve with a wear resistant coating offers longer product life compared to competing designs.
- Stainless steel valve housing.
- High temperature silicone reinforced actuator diaphragm.
- Stainless steel actuator spring gives consistent force at high temperature.
- Wear resistant stainless steel is used for the valve seat and valve bushing.
- Stainless steel hardware.
- Mating weld flanges are 304L SS.
- M10 air ports for easy install.
- Compact design fits in very tight spaces.
- 2-bolt inlet and outlet make install easy.

Included in the package:
- F38 wastegate assembly
- Inlet and outlet flanges, CNC machined in-house from 304L SS
- All air fittings, CNC machined in-house, from stainless steel and aluminum

Please select the preferred Bar in the drop down menu

Wastegate 38mm .3 Bar (3.63 psi)
Wastegate 38mm .4 Bar (5.80 psi)
Wastegate 38mm .5 Bar (7.25 psi)
Wastegate 38mm .6 Bar (8.70 psi)
Wastegate 38mm .7 Bar (10.15 psi)
Wastegate 38mm .8 Bar (11.60 psi)
Wastegate 38mm .9 Bar (13.05 psi)
Wastegate 38mm 1.0 Bar (14.50 psi)
Wastegate 38mm 1.1 Bar (14.50 psi)
Wastegate 38mm 1.2 Bar (17.40 psi)
Wastegate 38mm 1.3 Bar (18.85 psi)
Wastegate 38mm 1.4 Bar (20.30 psi)
Wastegate 38mm 1.5 Bar (21.75 psi)
Wastegate 38mm 1.6 Bar (23.20 psi)
