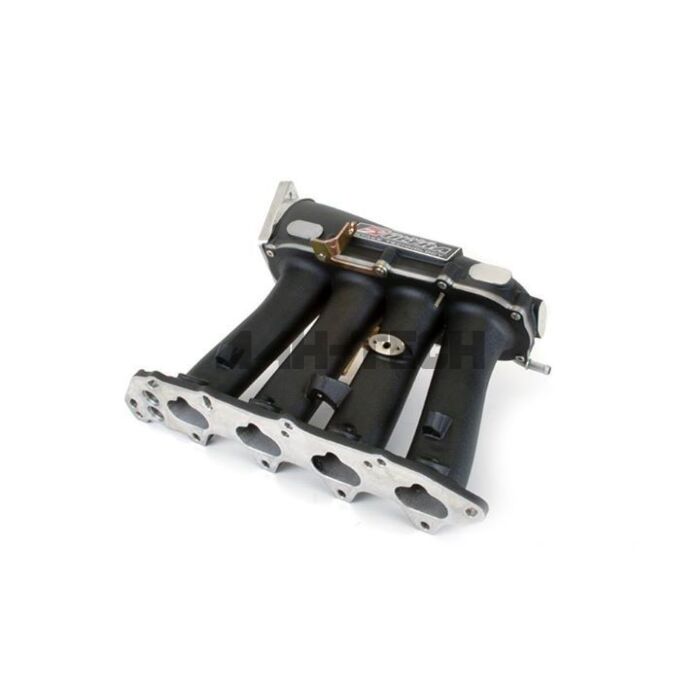

Skunk2 ULTRA Street series Inlaatspruitstuk zwart (Honda B-Serie motoren)

The engineers at Skunk2 Racing have worked tirelessly to develop the next generation of high performance intake manifolds and are proud to announce the release of the much anticipated Ultra Series Intake Manifold. Years of R&D have culminated in a multi-piece cast aluminium intake manifold that offers advantages that only a modular design could allow.

Building upon the performance legacy of our Pro Series Intake Manifold, as well as using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. In addition to CFD testing, the Ultra Series Intake Manifold has undergone extensive in-house dyno and on-car testing which has led to a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

Ultra Series Intake Manifolds are made from high-grade 356 aluminium alloy for a strong and lightweight design, CNC-machined for a precise fit, and individually inspected for quality assurance. The large 74mm throttle body opening, velocity stacks, and 221.5mm hi-velocity long intake runners with smooth transitions allow the Ultra Series Manifold to outflow the competition. Designed to be used with street applications, the Skunk2 Ultra Series Street Intake Manifold helps provide a new level affordable high-end intake technology to the marketplace.

FEATURES:

-High quality Black Finish
-Hi-Grade Mounting Hardware
-1.82L Plenum Volume
-8.72" Long Runners with Raised Velocity Stacks - Plenty of Material to Port
-Unique Mounting Flange Universally Fits All B Series VTEC Heads
-74mm Throttle Body Opening
-Includes Thermal Manifold Flange Gasket
-Generously Cast Runner Walls for Porting
-Fits ALL Popular Chassis Configurations - Not Just Race Cars

Please Note: Will NOT work with factory throttle body. A minimum of 68mm throttle body is required.

Want to know the difference between Pro series and Ultra series? and how to mount the EACV valve? It's all in this video: Click here
