Radium Engineering brandstof rail (Honda 05-09 F20/F22C motoren)

The Radium Engineering rail features a large 0.69" internal diameter bore to suit even the most fuel hungry engines. They are CNC machined from extruded 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. All 3 ports are machined with 8AN ORB (3/4-16 female) threads.

Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

Ports and fittings:

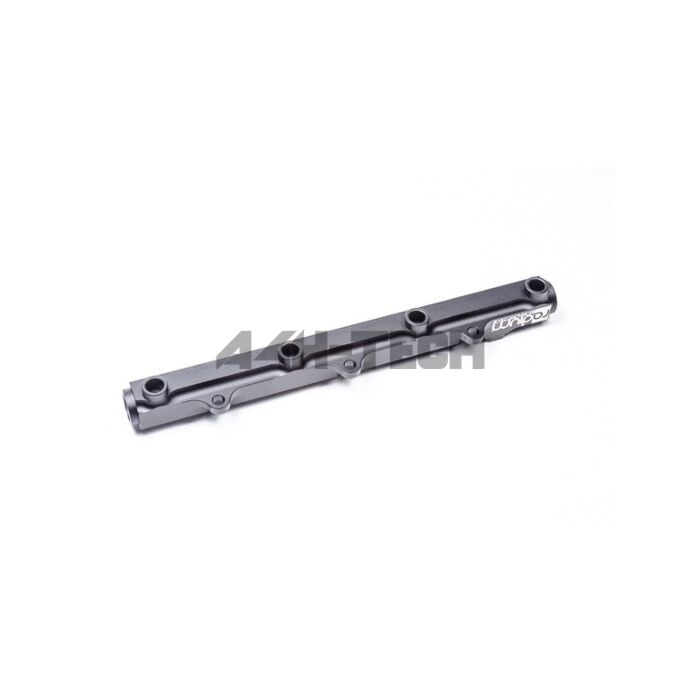

The fuel rail is machined, anodized, and laser etched for a high quality surface finish.
As depicted, it features billet aluminum mounting feet with stainless steel hardware.
There are three 8AN ORB machined ports for ancillary accessories.
It is compatible with all fuel types including popular alcohol mixtures such as E85.

Click here to download installation instructions (PDF)

Included:

-Black Anodized Laser Etched Aluminum Fuel Rail
-Stainless Steel FPR Mounting Hardware
-No fittings included (available seperately or as a fitting kit)
