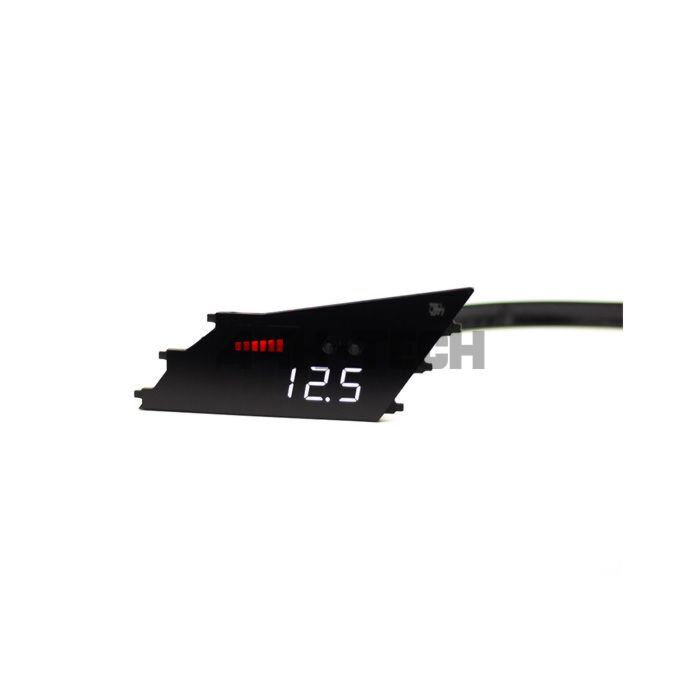

P3 Gauges analoog dashboard meter (Honda Civic 17-21 FK6/FK7/FK8)

P3 Gauges analog dashboard meter.

Simply put, P3 builds custom-integrated gauges that are tailored to blend into the interior of your vehicle. Rather than build a “one size fits all” gauge, we take a model-specific design approach that results in an OEM look and feel. We might be a small company, but we have a big vision– to change the face of automotive aftermarket gauges, one vehicle at a time, by offering an option that doesn’t look, well… aftermarket.

Please note: *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

• 4 Available Analog Readouts:
• Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
• Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
• Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
• Battery voltage (red wire / black wire - read through power and ground wires)
• optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

Specifications:

• Integrated display
• Analog Box control unit
• Main harness
• Hard-wire harness
• Analog boost sensor *boost tap not included
• Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
• 3 zip ties
• 2 scotchlok wire taps
