Artikelcode
BC-BC0031-2

Brian Crower nokkenassen stage 2 Forced induction Spec (H22-serie motoren)

Incl. 21% Btw
Speciale prijs € 707,20 Normale prijs € 832,00
Je bespaart € 124,80

Klarna logo

Op voorraad

Omschrijving

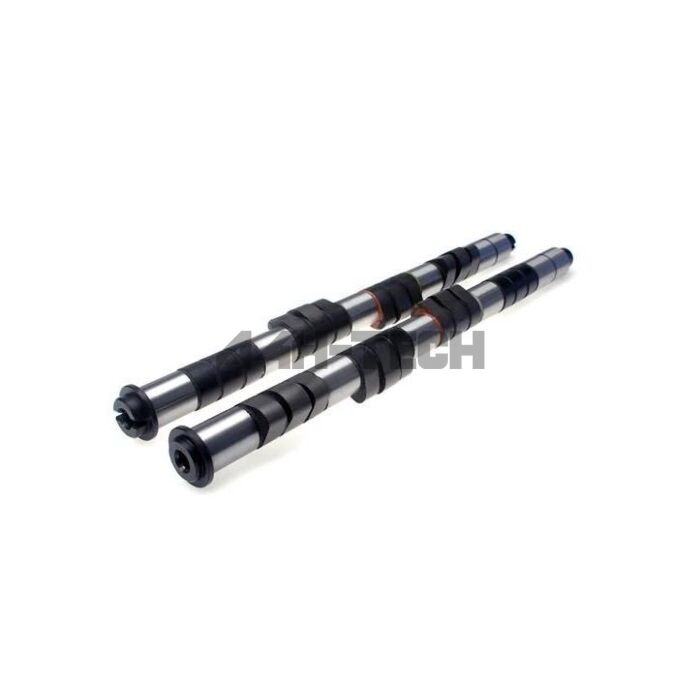

Honda H22 Stage 2 Camshafts - Forced Induction Spec

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Adv Dur 310°/308°
Dur @ .050 257°/256°
Valve Lift (1.55:1) .486"/.465"
Valve Lift (mm) 12.34/11.81

Cam Card: Click here

IMPORTANT INFORMATION: Do not use impact wrench/gun to torque cam gear to camshaft.Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require a lesser torque value than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt is able to engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
Toon meer

Stel een vraag over dit product

Schrijf uw eigen review

Alleen geregistreerde gebruikers kunnen reviews schrijven. Log in of maak alstublieft een account aan. inloggen of maak een account aan

Omschrijving

Honda H22 Stage 2 Camshafts - Forced Induction Spec

NEW PROFILE DESIGN - Short duration profile builds cylinder pressure by reducing overlap, high lift for more air intake. Requires kit BC0030 or BC0030S.

Adv Dur 310°/308°
Dur @ .050 257°/256°
Valve Lift (1.55:1) .486"/.465"
Valve Lift (mm) 12.34/11.81

Cam Card: Click here

IMPORTANT INFORMATION: Do not use impact wrench/gun to torque cam gear to camshaft.Torque cam gear bolt to 22 ft lbs. Aftermarket cams are chilled cast and require a lesser torque value than the OEM/factory steel cams. If using aftermarket gears, make certain the cam gear bolt is able to engage 3 to 4 threads into the body of the cam. Thicker gears will cause the cam bolt to only engage the threads in the snout, increasing the chance of breakage.
