Acuity Short Shifter adapterplaat FK7/FK8 shifter K-swap (Honda Civic/CRX/Del sol/Integra/Prelude)
Omschrijving

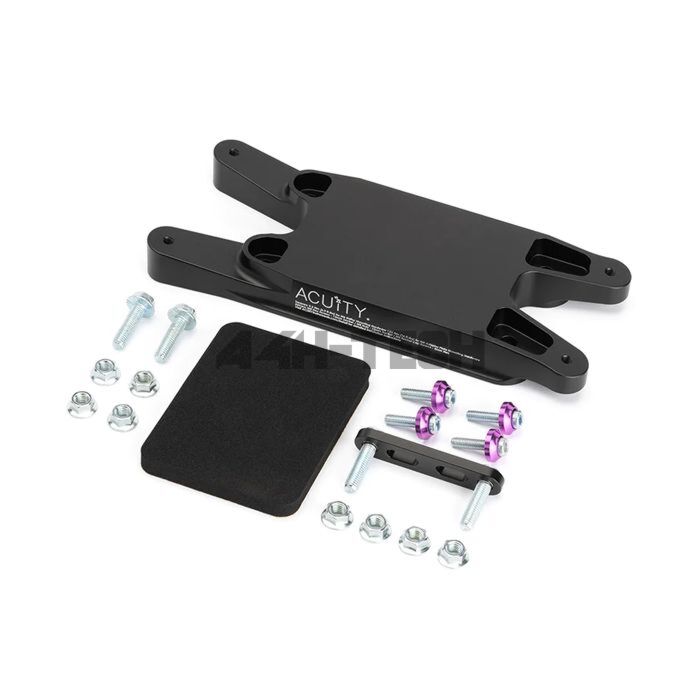

This kit is designed to permit mounting of a 2016+ 10th Gen Civic shifter (OEM or aftermarket for any trim) into an L15B* or K20C* swapped 1988-2000 Civic or 1990-2001 Integra. With its modest weight of only 550 grams, a unique stud-plate mounting design, and integral foam seal, we believe this to be the most carefully designed L15b/K20C-swap shifter adapter plate of its kind. Each adapter plate is machined from 6061-T6 aluminum and receives a durable black anodized finish. The plate mounts to the center tunnel using 2 screws and 1 stud plate, all of which are inserted from under the center tunnel. The unique mounting design permits installation by a single user and prevents possible damage to the OE weld on manual chassis (an issue common to some competing designs). A self-adhesive foam pad is included to help with sealing on manual chassis. Consider pairing this with an OEM FK8 shifter and our Shifter Rocker SKU (1922), Centering Spring (SKU 1918), and Base Bushings (SKU 1914) for a more modest setup or pair it with our Performance Adjustable Shifter (SKU 1892) for the ultimate shifting experience.
This plate is designed with the assumption that the shifter cables will be routed through the firewall near where the firewall meets the center tunnel. In some cases, when the heater core is removed, it may be possible to route the cables through the former heater core hole. Other users may wish to cut a new hole in the firewall near the center tunnel to route the cables more discretely and/or to retain use of the heater core.
Installation on manual chassis will require drilling of 2x 10mm holes. Installation on auto chassis will require drilling of 4x 10mm holes and grinding down a small portion of sheet metal.
*See the compatibility list for a full list of compatible chassis, shifters, shifter cables, and transmissions.
This plate can be fitted to any of the following chassis:
- 1988-1991 Civic (EC/ED/EE/EF/EX)
- 1990-1993 Integra (DA/DB)
- 1992-1995 Civic (EG/EH/EJ)
- 1996-2000 Civic (EJ/EK/EM)
- 1994-2001 Integra (DB/DC)
This plate accepts OEM or aftermarket shifters designed for any of these vehicles:
- 2016+ 10th Gen Civic (all mt, including sport model)
- 2017+ 10th Gen Civic Si
- 2017+ 10th Gen Civic Type R
Compatible Shifter Cables:
- 2016+ 10th Gen Civic (all mt, including sport model)
- 2017+ 10th Gen Civic Si
- 2017+ 10th Gen Civic Type R
- 2018+ 10th Gen Accord (all mt)
Combinations of shifters and cables listed above are compatible with transmissions from these vehicles:
- 2016+ 10th Gen Civic (all mt, including sport model)
- 2017+ 10th Gen Civic Si
- 2017+ 10th Gen Civic Type R
- 2018+ 10th Gen Accord (all mt)
Install guide (manual tranmission): download here
Install guide (automatic transmission): download here
