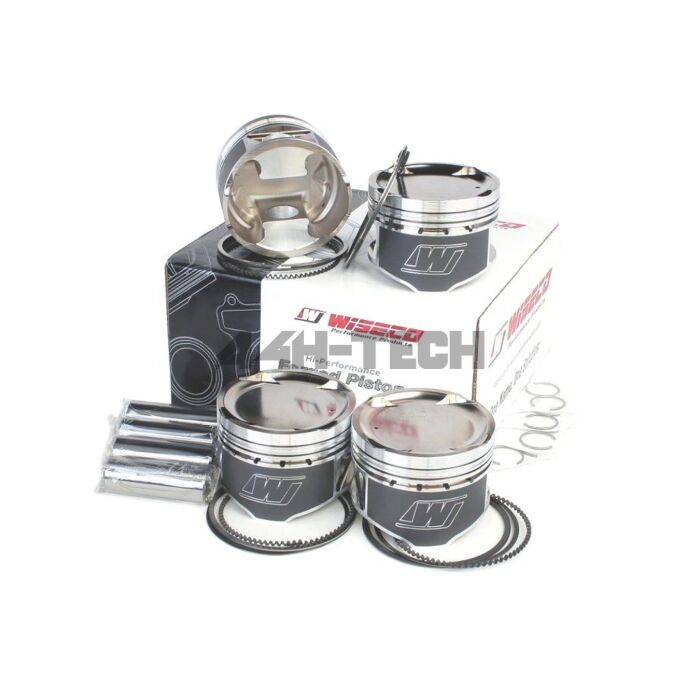

Wiseco performance pistons 9.3:1 compression ratio (B20B+VTEC kop engines)
Description
Wiseco's Sport Compact pistons are made from dedicated forgings produced in-house to give you a light weight piston with superior strength and optimal design.
Being the multivalve piston technology leader, the line features specially designed valve pockets, complex dome and crown shapes, the steel nitride/napier xx rings and optimized skirt profiles.
Wiseco pistons go through more finishing processes than any other piston on the market, without driving the cost up.
They come with more features standard than any other piston on the market, at a more affordable price than many of the competitors.
All of the Wiseco pistons for this application come standard with anti-friction skirt coating which helps minimize scuffing during break-in and lower friction on the cylinder wall.
The top face of the piston is textured to improve the combustion characteristics, and all kits come with rings, pins and locks.
Bore mm Oversize
84.00 Std
84.50 .020
85.00 .040
Stroke: 3.504
Rod lgth: 5.394
Comp. ht.: 1.181
Head cc's: 42.7
Dome dish: -10cc
Gasket thickness: .030
Deck clearance: .020-
Block ht.: 8.347
Pin diam.: .827
