Part number
RD02608419

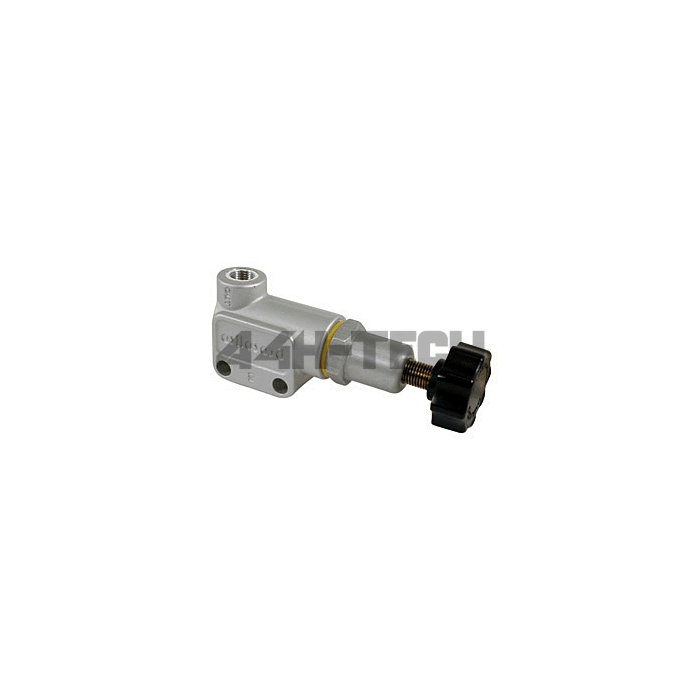

Wilwood brake proportion valve (universal)

Incl. 21% VAT
Special Price € 86,58 Regular Price € 88,35
You save € 1,77

Shipping costs to your country? Calculate it in your cart.

Klarna logo

In stock

Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Specifications:

- Maximal reduction: 57%
- Stepless adjustment

Also available in M10x1 fitting and 3/8-24 fitting. (on request by email)

Show more

Ask a question about this product

Write Your Own Review

Only registered users can write reviews. Please Sign in or create an account

Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Specifications:

- Maximal reduction: 57%
- Stepless adjustment

Also available in M10x1 fitting and 3/8-24 fitting. (on request by email)

Show more

Suitable for:

Universal
