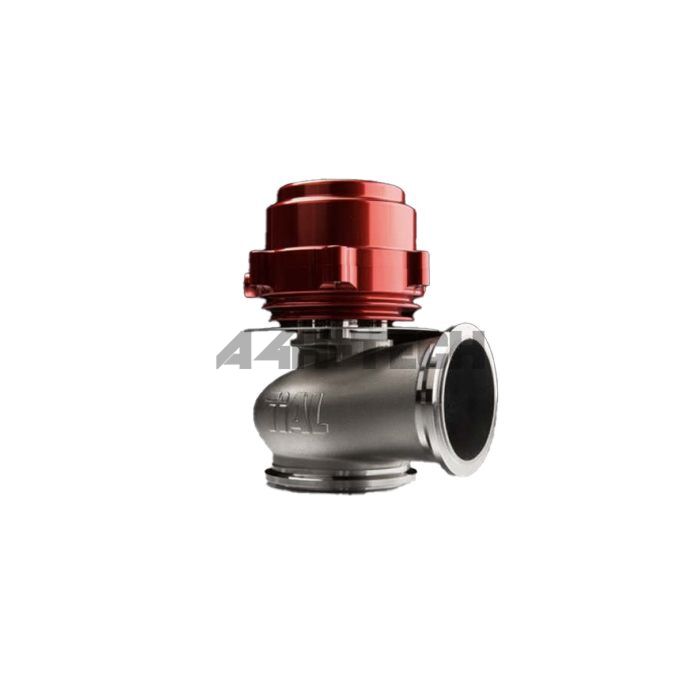

TiAL Sport External wastegate red 50mm v-band (universal)
90% of the products in our store are in internal or external stock and we can often process your order quickly (varying from a few hours to a number of business days).
Naturally it is possible that a product has an (unexpected) longer delivery time.
Upon receipt of your order, we will always inform you about this and offer any available alternatives. So keep a close eye on your mailbox.
We deliberately provide stock information about our products afterwards, because many suppliers do not offer a ''stock link system'' and we do not want to show '' estimates '' in advance, like many other webshops do (which are often incorrect and give you wrong information in advance). We only want to give our customers actual information on the moment of processing the order so we don't mislead our customers.
If you need a product VERY quickly and you need to be sure that we have it in stock, please e-mail or call us or send a message via ''ask a question about this product'' below in the product description.
The V50 shares the same form factor with the legendary V60, but offers a smaller valve size for applications that are sensitive to EMAP-induced valve lift.
Technical Specifications:
- High temp alloy is used for valve and stainless steel valve housing will offer longer product life compared to competing designs.
- High temperature silicone reinforced actuator diaphragm.
- Stainless Steel actuator spring gives consistent pressure at high temperature.
- Stainless Steel is used for the valve seat and valve bushing.
- All Stainless Steel hardware.
- Mating weld flanges are 304L.
- M10 air signal ports for easy install.
Included in the package:
- V50 wastegate assembly
- SS Band V-clamps and flanges (Optional legacy billet clamps are available upon request at an additional charge)
- All air fittings, CNC machined in-house, from stainless steel and aluminum
Please select the preferred Bar in the drop down menu
Wastegate 50mm .19 Bar (2.76 psi)
Wastegate 50mm .27 Bar (3.92 psi)
Wastegate 50mm .35 Bar (5.08 psi)
Wastegate 50mm .43 Bar (6.24 psi)
Wastegate 50mm .52 Bar (7.54 psi)
Wastegate 50mm .592 Bar (8.60 psi)
Wastegate 50mm .67 Bar (9.72 psi)
Wastegate 50mm .75 Bar (10.88 psi)
Wastegate 50mm .86 Bar (12.47 psi)
Wastegate 50mm .95 Bar (13.78 psi)
Wastegate 50mm 1.02 Bar (14.79 psi)
Wastegate 50mm 1.1 Bar (15.95 psi)
Wastegate 50mm 1.18 Bar (17.11 psi)
Wastegate 50mm 1.23 Bar (17.84 psi)
Wastegate 50mm 1.31 Bar (19.0 psi)
Wastegate 50mm 1.4 Bar (20.3 psi)
Wastegate 50mm 1.49 Bar (21.61 psi)
Wastegate 50mm 1.57 Bar (22.77 psi)
