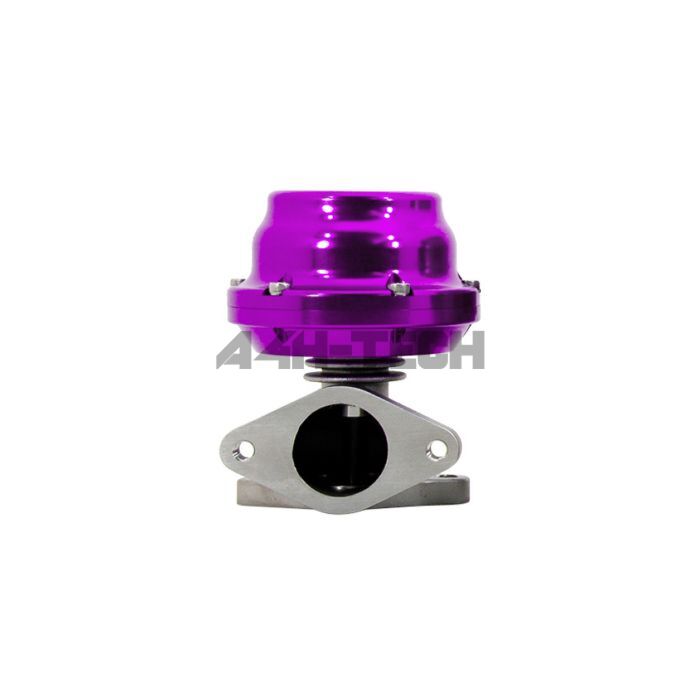

TiAL Sport External wastegate pruple 38mm 2-bolt (universal)
90% of the products in our store are in internal or external stock and we can often process your order quickly (varying from a few hours to a number of business days).
Naturally it is possible that a product has an (unexpected) longer delivery time.
Upon receipt of your order, we will always inform you about this and offer any available alternatives. So keep a close eye on your mailbox.
We deliberately provide stock information about our products afterwards, because many suppliers do not offer a ''stock link system'' and we do not want to show '' estimates '' in advance, like many other webshops do (which are often incorrect and give you wrong information in advance). We only want to give our customers actual information on the moment of processing the order so we don't mislead our customers.
If you need a product VERY quickly and you need to be sure that we have it in stock, please e-mail or call us or send a message via ''ask a question about this product'' below in the product description.
The F38 replaces the legacy-model F35, and is unique in that it uses a 2-bolt flanged design for both inlet and outlet. This makes it an excellent upgrade or update for similar products.
Technical Specifications:
- High temp based alloy valve with a wear resistant coating offers longer product life compared to competing designs.
- Stainless steel valve housing.
- High temperature silicone reinforced actuator diaphragm.
- Stainless steel actuator spring gives consistent force at high temperature.
- Wear resistant stainless steel is used for the valve seat and valve bushing.
- Stainless steel hardware.
- Mating weld flanges are 304L SS.
- M10 air ports for easy install.
- Compact design fits in very tight spaces.
- 2-bolt inlet and outlet make install easy.
Included in the package:
- F38 wastegate assembly
- Inlet and outlet flanges, CNC machined in-house from 304L SS
- All air fittings, CNC machined in-house, from stainless steel and aluminum
Please select the preferred Bar in the drop down menu
Wastegate 38mm .3 Bar (3.63 psi)
Wastegate 38mm .4 Bar (5.80 psi)
Wastegate 38mm .5 Bar (7.25 psi)
Wastegate 38mm .6 Bar (8.70 psi)
Wastegate 38mm .7 Bar (10.15 psi)
Wastegate 38mm .8 Bar (11.60 psi)
Wastegate 38mm .9 Bar (13.05 psi)
Wastegate 38mm 1.0 Bar (14.50 psi)
Wastegate 38mm 1.1 Bar (14.50 psi)
Wastegate 38mm 1.2 Bar (17.40 psi)
Wastegate 38mm 1.3 Bar (18.85 psi)
Wastegate 38mm 1.4 Bar (20.30 psi)
Wastegate 38mm 1.5 Bar (21.75 psi)
Wastegate 38mm 1.6 Bar (23.20 psi)
