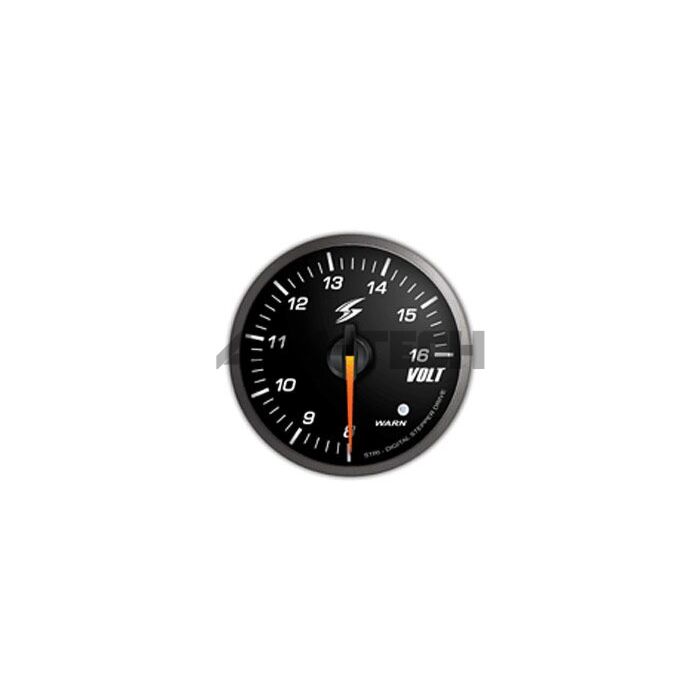

STRI DSD serie Volt gauge SLM white LED 52mm (universal)

DSD = Digital Stepper Drive
Control and operates by Advance Digital Microprocessor
Stepper Motor Driven (PM Type - Gearless)

Micro Stepping Movement - high resolution and accurate readings

• Super high torque - maintains the pointer accurately in toughest racing environments / prevents pointer from overshooting at high speed movements
• Fast response - eliminates reading lag / real time display
• Gearless - noiseless operation / more durable

  Special Note

Unlike conventional gear type stepper motors which are noisy and respond in slower reaction speed

• DSD stepper motors have been test proven in the toughest vibration environments which is a general characteristic of race tuned vehicles

The following standard features can be found in all DSD series:

• Open/Closing Ceremony in sequences
• 270 Degree Sweep
  Wide viewing angle for higher resolution reading
• Warning Setting - User Preset
  User preset warning values - alarm by LED
• Peak Recall
  On demand, view highest value achieved
• Automatic Self Calibration
  Each DSD meter is equipped with self calibration function that resets the pointer position after each installation. Or can be manually activated by shutting off the constant power source
• Short-Circuit Auto Detect
  If the sensor wire is incorrectly connected or the signal extension wire cut, the meter will detect the error and alarms the driver. (Backlighting will go off / pointer flashing)
