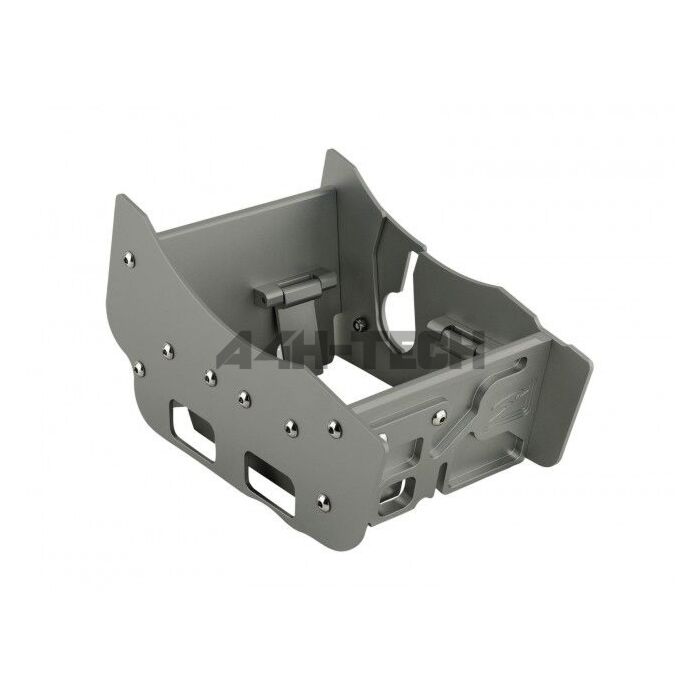

Skunk2 Racing Aluminium Sump Baffle Honda (K20A/K24 engines)

The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is for the serious hardcore racer. The baffle easily installs onto an existing K20A/K20A2/K20Z1 OEM Honda/Acura Oil Pan. The baffle sits flush with the oil pan floor and essentially “Boxes In” the Oil Sump Arm thus preventing Oil Sloshing/Oil Starvation under intense cornering, braking, and accelerating. Furthermore, the dividers and trap doors section off the sump to keep oil from moving aggressively from one side of the pan to the other. Another added feature is the open top design that allows an adequate amount of oil flow back to the pan. The design is simple and effective yet allows continuous oil pick-up where critical engine lubrication is maintained.

Features:

Prevents oil starvation under heavy cornering, braking, and acceleration

Easy drop-in design

Cost Effective Oil Control Solution

6061-T6 Aluminum Construction

Fits engines using K20A/A2/Z1 Oil Pump and Pan

Direct drop-in fitment for JDM K20A (DC5/EP3 Type-R), K20A2 (02-04 RSX Type-S), K20Z1 (05-06 RSX Type-S) engines

K-series Engine Compatibility Notes:

The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the EDM/USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines.

It is compatible with all other K-series engines as long as they are installed with following parts:

(K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000

(K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01

(K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004

(K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004
