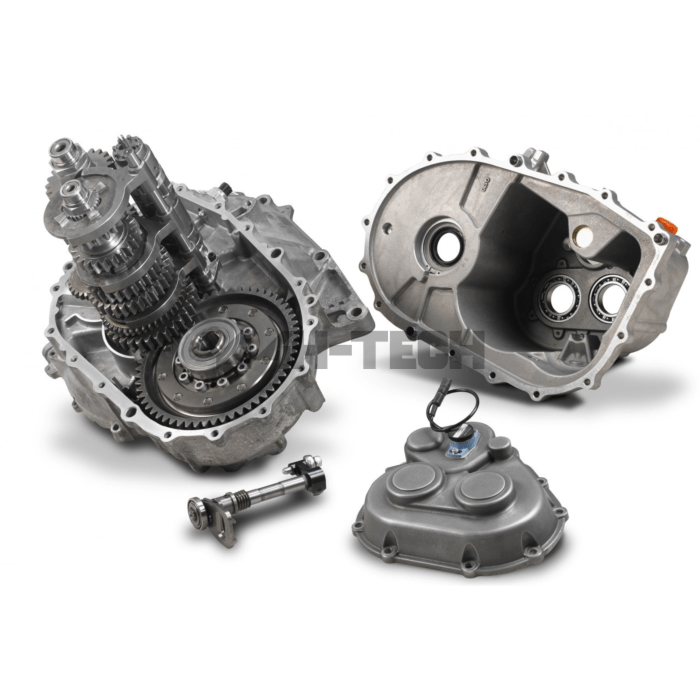

QKE8J is a 5-speed sequential gearkit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Intregra. Ideally suited to circuit racing, drag racing and rally use it's designed as a direct replacement for the standard six-speed H-pattern Honda transmission.
QKE8J features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. A compact, drum style sequential gearchange mechanism and an open face dog design ensure an ultra rapid, positive gear sequential shift.
QKE8J re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. Wide straight cut (spur) close-ratio gears minimise transmission losses and offer a choice of rally, race or drag race gearing. There is also the choice of a helical set for road and track day applications.
Key technical features of the QKE8J five-speed Honda EP3/FN2/DC5 sequential gearkit include:
-Strengthened outer casing and five wider gears
-Ultra fast sequential gearshift with straight cut or helical close-ratio gears
-Retains stock EP3/FN2/DC5 clutch, diff, driveshafts and mounts
-Optional LED digital gear position indicator available
-Optional Quaife ATB for both standard driveshafts (QDF9U) and 28T DSS uprated shafts (QDF17U)
PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever and cable.
Gear Ratios:
1st 2nd 3rd 4th 5th
3.100 2.067 1.421 1.048 0.870 - Drag Set
3.100 2.067 1.611 1.333 1.136 - Rally Set
2.417 1.611 1.263 1.000 0.852 - Race Set
2.400 1.600 1.261 1.038 0.857 - Road/Track Helical Set
Final Drive Ratios
4.357 Spur 4.750 Spur 4.750 Helical
