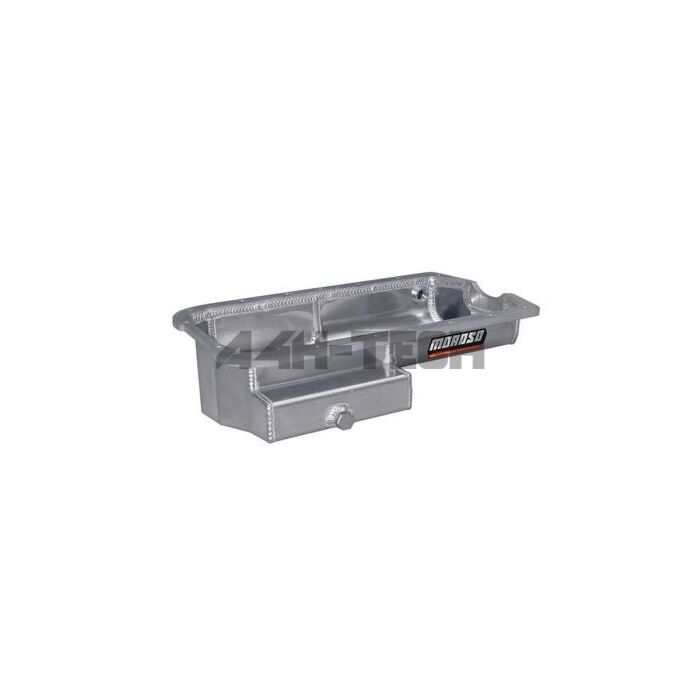

Moroso baffled sump 5.2 liter (H-serie engines)

Whether you drag, oval or road race, Moroso has the Oil Pan your engine needs specially designed for front or rear wheel drive sport compacts. Each pan is fully fabricated from aluminum or steel, with race proven features that control oil for maximum power. The key is to keep the crankshaft free of excess oil which allows the engine to spin freely and achieve its full power potential.

This sump features a baffle that fully surrounds oil pump pickup. It also has two 1/2 NPT bungs for plumbing turbo oil return line and oil temperature sender.
It works with OEM exhaust manifold and most aftermarket exhaust manifold combinations.

Product Specs:

-Oil pan with 3/4'' thick aluminium pan rail
-Fully fabricated
-Integral sump tray and large 6'' trap-door baffle for oil control
-Includes two 1/2 NPT bungs for plumbing turbo oil return line and oil temperature sender.
-Can be used in combination with OEM pickup
-Includes pan mounting kit with hex-drive steel studs

This sump does not fit on the 4WS prelude
