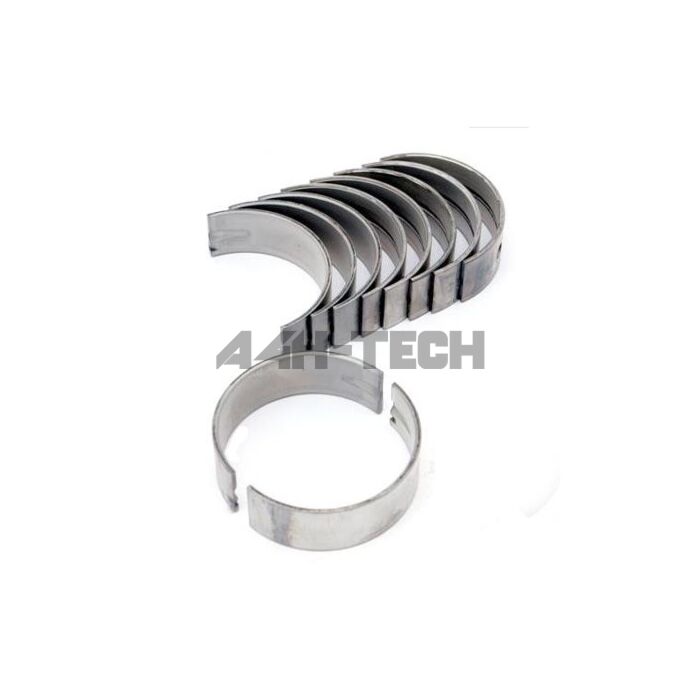

Mahle Clevite Race connecting rod bearings (Honda B18C/B16B engines)
90% of the products in our store are in internal or external stock and we can often process your order quickly (varying from a few hours to a number of business days).
Naturally it is possible that a product has an (unexpected) longer delivery time.
Upon receipt of your order, we will always inform you about this and offer any available alternatives. So keep a close eye on your mailbox.
We deliberately provide stock information about our products afterwards, because many suppliers do not offer a ''stock link system'' and we do not want to show '' estimates '' in advance, like many other webshops do (which are often incorrect and give you wrong information in advance). We only want to give our customers actual information on the moment of processing the order so we don't mislead our customers.
If you need a product VERY quickly and you need to be sure that we have it in stock, please e-mail or call us or send a message via ''ask a question about this product'' below in the product description.
The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance engine bearings.
Designed to withstand higher RPM conditions, Mahle Clevite Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:
High strength overlay plate with reduced thickness for improved fatigue properties
Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
Increased crush for improved bearing retention
Elimination of flash plating on the back of the bearings to improve heat transfer through the bearing sand to maximize the grip between the bearings and its housing
Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
Tight consistent wall tolerances to help you maintain consistent clearances.
Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Size: Std
Half Type: Identical halves
Material: Tri-metal Hardened steel backs
Min Std Shaft Size: 1.7707 / 44.976mm
Max Std Shaft Size: 1.7717 / 45.000mm
Min Std Housing Bore: 1.8898 - 48.000mm
Max Std Housing Bore: Nominal
Max Bearing Thickness: 0.0586 / 1.489mm
Max Overall Length: 0.689 / 17.50mm
