Hybrid Racing K-series swap air conditioning line kit (Honda Civic 94-95/Del Sol)
Description
The Hybrid Racing K-swap air conditioning conversion kit allows you to retain AC when installing a K-series engine into your EG Honda Civic or Del Sol. This kit is designed to work with a compressor from a K20A, A2, A3 or K20Z1 engine. It works with the K24 engine, but you must use one of the compressors listed above!
Each kit is bent, crimped and brazed utilizing precise measurements and requirements provided by Hybrid Racing.

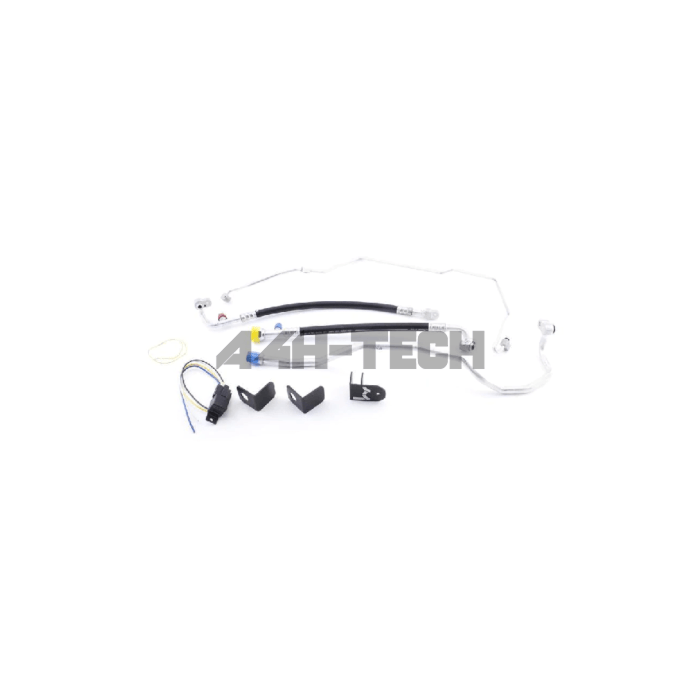

The AC kit comes with 4 custom AC lines and all necessary wiring and O-rings.
You will need to keep 3 of your OEM lines, and a condenser from a 96-00 Civic, the pressure switch from your stock 92-93 Civic condenser and the mounting bushings from your OEM condenser. You will also need to purchase a High-performance Slim Fan.
You will need to hook up the compressor, fan and pressure switch for the compressor to kick on and off.
You will need a 96-00 Civic condenser.
If you do not plan on keeping power steering you will need to purchase a K20A3 02-05 Civic Si K20A3 pulley setup and belt. If you plan on running PS you can use a stock K20A/A2/Z1 belt.
