Airtec Intercooler (Honda Civic 15-16 2.0 Turbo Type R FK2)

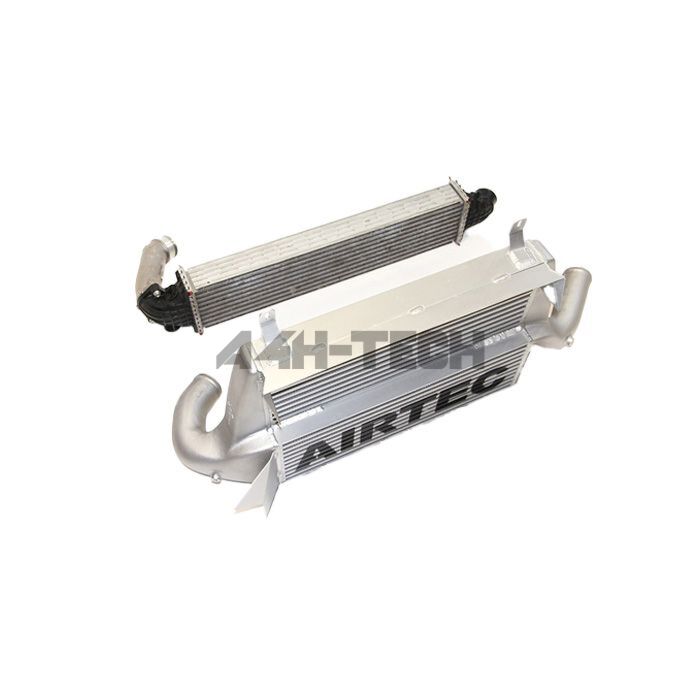

Airtec’s huge front mount intercooler upgrade for the new Honda Civic Type R FK2

Features:
- Dyno proven to show a huge reduction in charge temps over standard
- 60mm to 100mm two-step core design
- Hand crafted free flowing end tanks
- Lower alloy air scoop
- Direct fit with no additional drilling or cutting required
- Optional hand crafted big boost pipes

Fitting instruction

Designed to fit all 2015-2017 Honda Civic Type R models, this freer flowing front mount intercooler set up is a direct replacement for the much smaller, more restrictive OEM set up.

Dyno proven back-to-back testing showed a huge reduction in charge temps over standard (see below).

Despite its much greater surface area and volume, the Airtec Motorsport intercooler upgrade fits neatly behind the original front bumper and requires no additional drilling or cutting.

The comprehensive fitting kit includes silicone hose connectors for an easy fit, all the correct fixings, full instructions and optional larger diameter boost hoses.

DYNO TESTED
Test results taken at AmD Rolling Road showing charge temps before and after the OEM intercooler and the AIRTEC Motorsport upgrade.
(Tested on Dream Automotive’s FK2 demo car )
Run 1
OEM intercooler
IN – 131 OUT – 60
AIRTEC intercooler
IN – 117 OUT – 16
Run 2
OEM intercooler
IN – 134 OUT – 62
AIRTEC intercooler
IN – 107 OUT – 17
Run 3
OEM intercooler
IN – 132 OUT – 58
AIRTEC intercooler
IN – 120 OUT – 18
Dimensions:
Width: 1,000mm (Including end tanks)
Height: 370mm
Depth: 60mm / 100mm (Stepped design)
Outlet size: 63mm
