Wagner competition Ladeluftkühler schwarz (Civic 2017+ 1.5 Turbo FK7)

Competition Intercooler (single intercooler, no piping) for Honda Civic FK7 1,5 VTEC Turbo 2017-2021

The Competition Intercooler has the following core dimensions (715mm x 162mm x 122mm / stepped = 12.700cm³). The high performance intercooler core provides a 42% larger frontal area and 144% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the endtank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. The intercooler kit was developed directly for high tuning stages and is optionally available with Ø60mm piping. The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 7,5kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% plug and play. All of our products undergo rigorous quality control.

Dimensions stock Intercooler:
710mm x 114mm x 64mm
V=5,2 Liter
A=809 cm²

Dimensions WAGNERTUNING intercooler:
715mm x 162mm x 122mm
V=12,7 Liter
A=1154 cm²

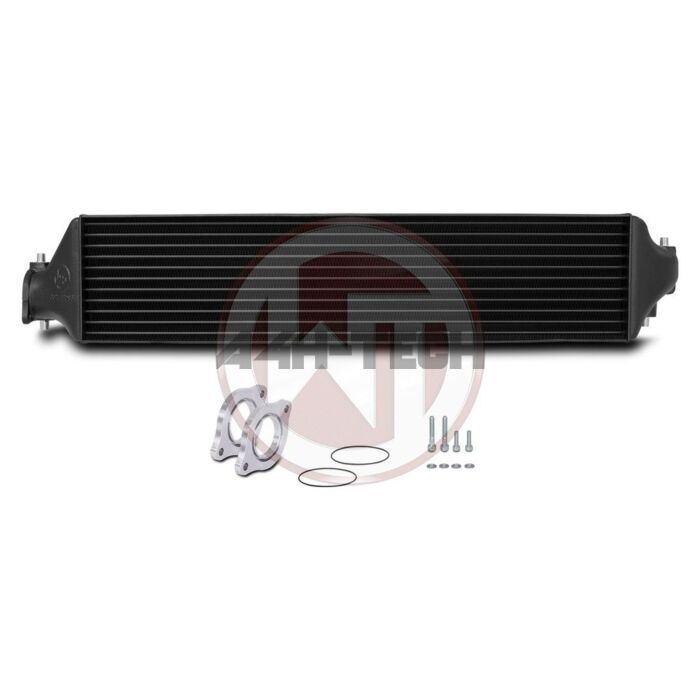

packing list:
1 intercooler (coated black)
2 adapter stock connection
2 sealing rings
1 installation instruction

INCLUDING TUV APPROVAL
