Wagner competition Ladeluftkühler satz schwarz (Civic 2015+ Type R Turbo FK2)

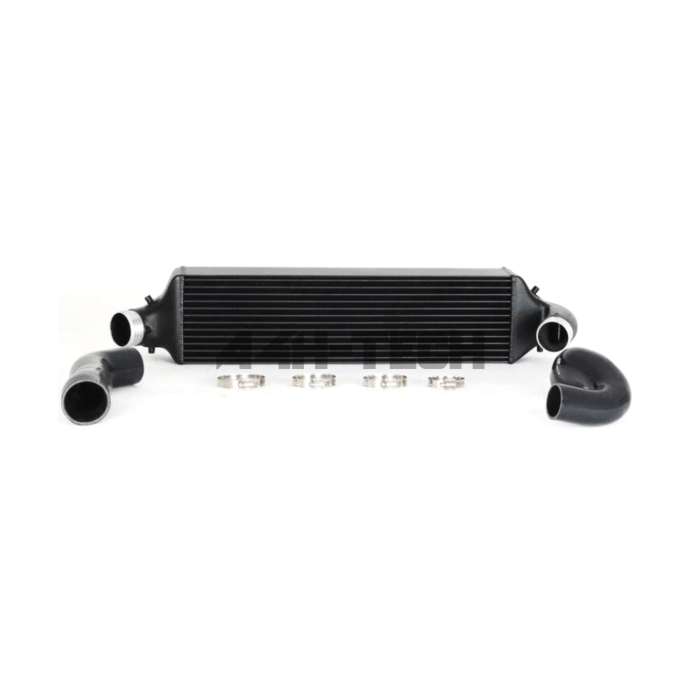

WAGNER Intercooler Kit. Competition Intercooler Kit for Honda Civic Type R. The high performance intercooler has the following core dimension (650mm x 175mm x 110mm) offering a 23% larger cooling surface and 101% more charge air volume compared to the original intercooler. The newly developed tube and fin core allows sufficient airflow to the adjacent components (i.e. water radiator) and is also very lightweight. The end tanks of the intercooler are made of cast aluminium and have been optimized under flow analyses in the CAD system. Additional air guides inside the inlet aid uniform filling of the intercooler. The result is excellent cooling with minimum back pressure. Perfect for fast road or race. It is mounted using the original mounting points and is easy to perform (1:1 exchange). Optimum cooling of the charged air with a clear increase in performance!

OEM Intercooler:

-Cooling Surface 924cm²
-Charge-Air-Volume 6,2L

WAGNERTUNING Intercooler:

-Cooling Surface 1137,5cm²
-Charge-Air-Volume 12,5L
-Inlet 65mm Outlet 70mm

Packing List:

-1 Intercooler
-2 Silicone Hose
-4 Hose Clamps

INSTRUCTIONS click HERE

INCLUDING TUV APPROVAL
