HEL performance 16 row Ölkühler satz mit air duct (Honda Civic 17-21 2.0 turbo Type R FK8)
90% der produkte in unserem shop befinden sich in unserem internen oder externen lager. Daher können wir Ihre bestellung meistens schnell bearbeiten (innerhalb einiger stunden bis zu mehreren arbeitstage).
Leider kann es vorkommen, dass ein produkt eine unerwartet lange lieferzeit hat. Nach eingang ihrer bestellung werden wir Sie per e-mail darüber informieren und mögliche alternativen anbieten.
Wir stellen anschließend bewusst lagerinformationen zu unseren produkten zur verfügung, da viele lieferanten kein system zur verknüpfung dieser produkte anbieten und wir nicht wie viele andere Webshops (die häufig falsch sind) im voraus schätzungen vorlegen.
Wir möchten unseren Kunden nur aktuelle Informationen zum Zeitpunkt der Bearbeitung der Bestellung geben, damit wir unsere Kunden nicht irreführen.
Wenn Sie ein Produkt SEHR schnell benötigen und sicher sein müssen, dass wir es auf Lager haben, senden Sie uns bitte eine E-Mail oder rufen Sie uns an oder senden Sie eine Nachricht über "Stellen Sie eine Frage zu diesem Produkt" unten in der Produktbeschreibung.
Introducing our new direct fit oil cooler for the Honda FK8 Civic Type R. The HEL (Automotive) Devlopment Centre has been working on this kit for some time now, and we are happy to announce its release.
Unlike the FK2 Civic Type R, there was not a great deal of room to fit an oil cooler in direct air flow, without either blocking the intercooler or trying to squeeze a cooler behind the front grill – which would limit the useful area of the cooler to around 5 rows, the rest hidden behind the bumper.
After considering various locations we decided to develop a full “Race Inspired” oil cooler and brake duct to split the air flow for both brake and oil cooling.

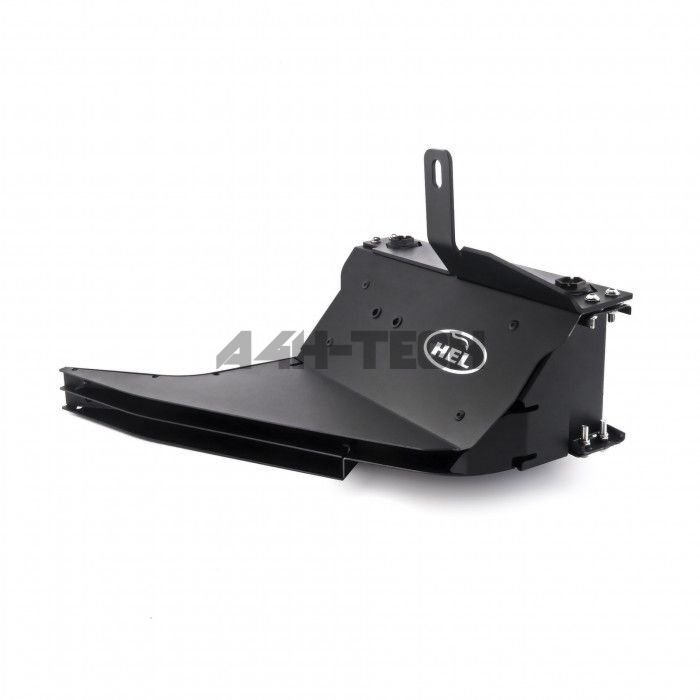

The oil cooler ducting is laser cut from sheet aluminium before being bent to exact tolerance to fit the front left of the car. The ducting is hard anodised black to give long term protection.
A 16 Row Setrab Series 6 ProLine oil cooler oil cooler is used in this kit. The 16 row option gives a great balance between minimising pressure loss while giving very effective cooling.
At the other end our cooler we opted for our latest Multi Angled Billet Thermostatic sandwich plate. The front mounted thermostat gives extra clearance on this kit where space around the oil filter is limited.
HEL Performance Multi Angled Billet thermostatic sandwich plate set at 92°C (197.6°F). We've found the 92°C option gives you the perfect balance between cooling when needed and letting the engine warm up safely. It's also dangerous for the oil to be too cold and the thermostat controls the temperature with precision.
This comprehensive kit come complete with preassembled high flow AN10 HEL braided hoses and anodised aluminium fittings. The entire length of the hoses is protected with our HEL Performance high temp 1000°C heat sleeve.
This direct-fit kit offers a safe and reliable cooling system for the FK8 Type R. It comes complete with easy-to-understand instructions and our technical support team are always happy to answer any questions you may have.
Whats included:
- Setrab Series 6 ProLine 16 row oil cooler with AN10 banjo adapters to maximise clearance and minimise pressure loss.
- HEL custom aluminium oil cooler/brake ducting – preassembled with cooler.
- HEL multi angled solid billet 92°C thermostatic oil filter sandwich plate.
- Preassembled AN10 HEL braided hoses with anodised aluminium fittings protected in our high temp heat sleeve.
- HEL aluminium hose separator.
- Stainless steel mounting hardware.
- Installation instructions.
