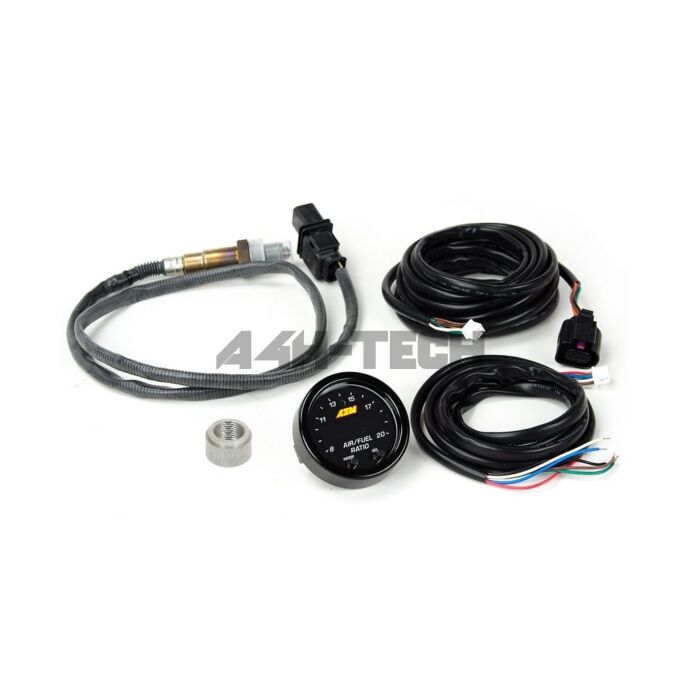

AEM X-series Wideband UEGO AFR Controller (universal)

AEM's X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patent-pending X-Digital technology that makes them the fastest responding wideband air/fuel ratio controllers in independent testing against 17 other wideband UEGO air/fuel controllers*.

The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter, and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge's center display. This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting. Its slim depth (less than one inch overall) and ultra slim cup depth of .200-inches dramatically increases its application base and potential mounting locations.

The X-Series Wideband UEGO AFR Gauge has a user configurable display via buttons on the gauge face that allow you to change AFR values for different fuels, Lambda or O2%, change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included, and an optional silver bezel with white dual-faced air/fuel and Lambda faceplate is available (PN 30-0300-ACC, sold separately). An Auto Dimming feature is included. Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge's durability.

The gauge includes a 0-5v and RS232 Serial Port output for feedback control and data logging, and an AEMnet (CANbus) output for data logging. AEMnet allows additional X-Series Wideband Controllers to be daisy chained together (up to 16 cylinders) for recording AFR in multiple cylinders. It supports vehicle/system voltages up to 16V, and can be used on EFI or carbureted applications, and dynamometers in applications using gasoline, methanol, ethanol, Diesel, propane and CNG.

X-DIGITAL TECHNOLOGY
X-Digital wideband technology gives these controllers the ability to read and report values that other controllers do not, which can deliver more optimized engine tuning and a safer overall operating condition. The controller's high speed digital implementation ensures no loss of signal fidelity and full transient response, making it able to identify the slightest fluctuations in AFR and output them in full value.

* Independently tested at 360^0 Product Testing (results reported on August 31st, 2015) against 17 competitor wideband UEGO Air/Fuel Controllers. AEM X-Series Inline with Bosch 4.9LSU wideband sensor and AEM X-Series Wideband UEGO AFR Gauge with Bosch 4.9LSU sensor recorded.
